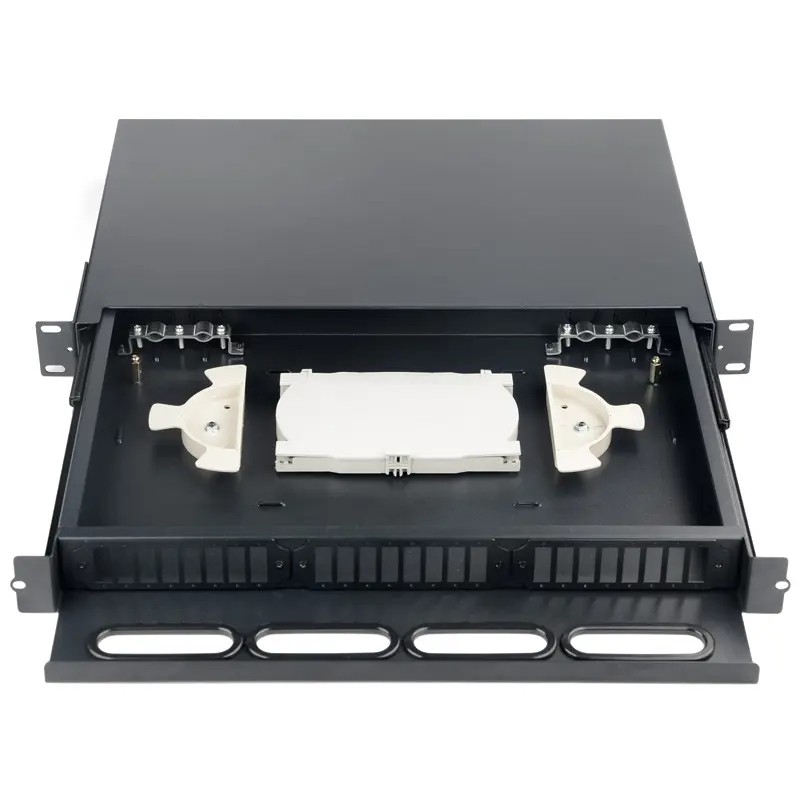

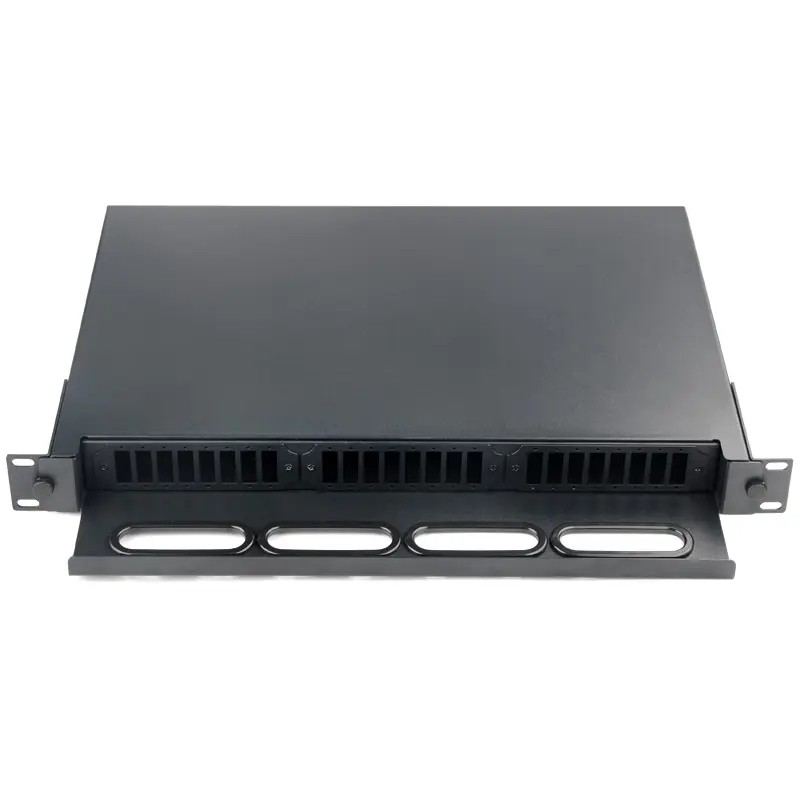

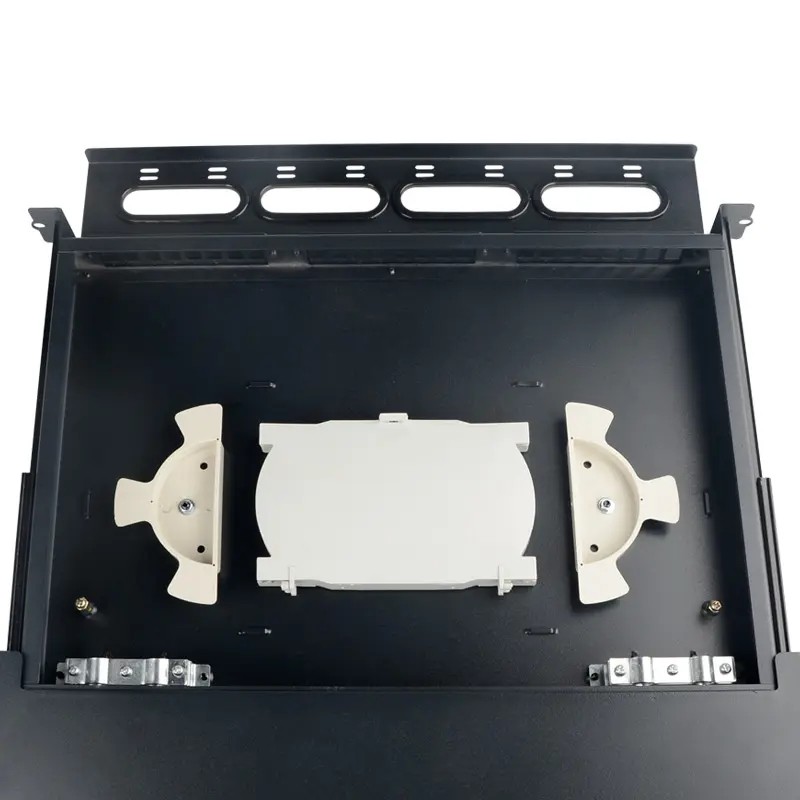

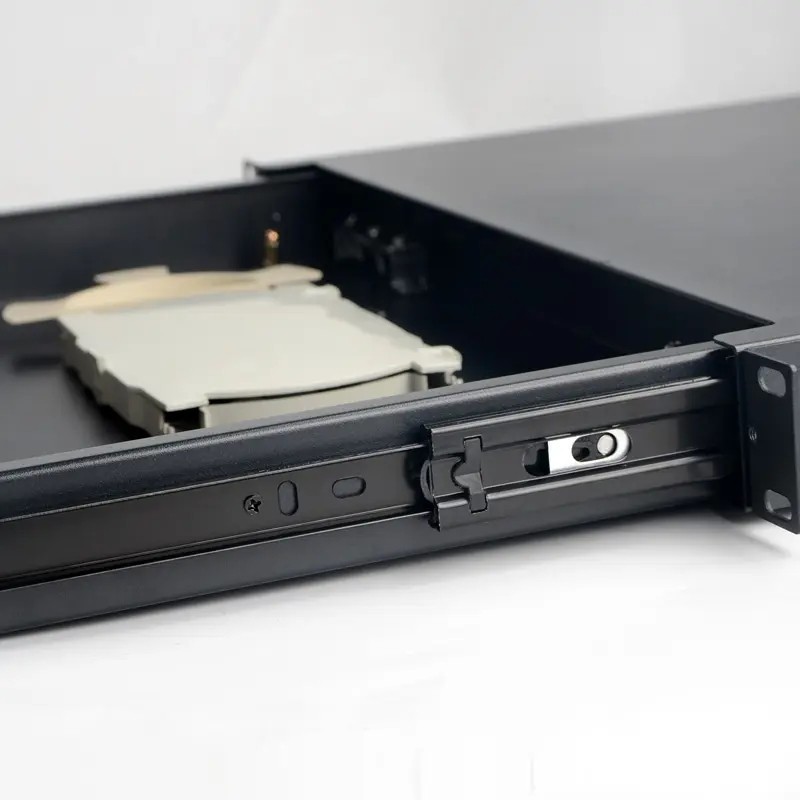

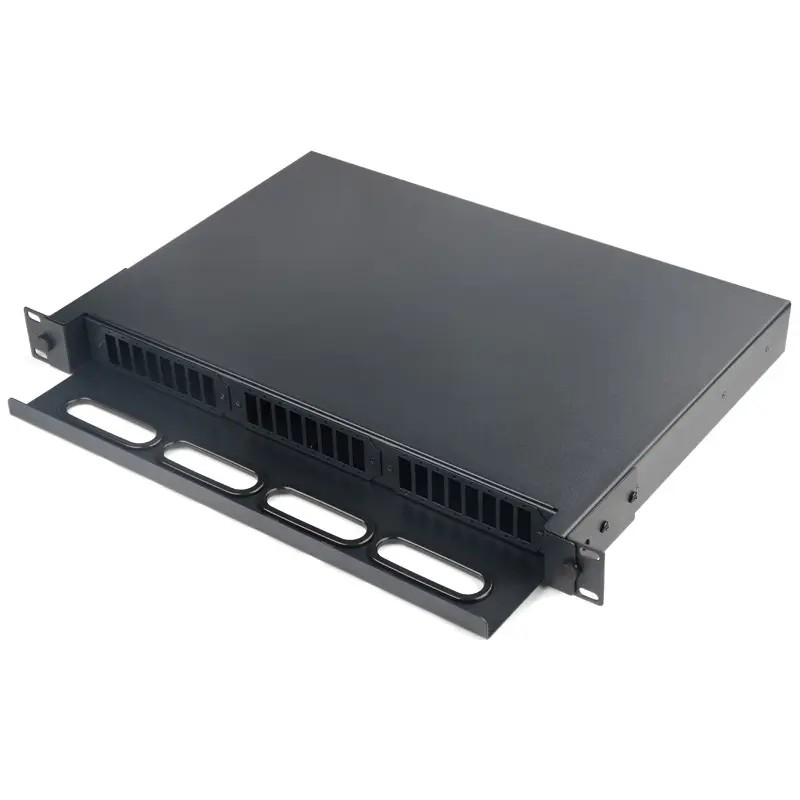

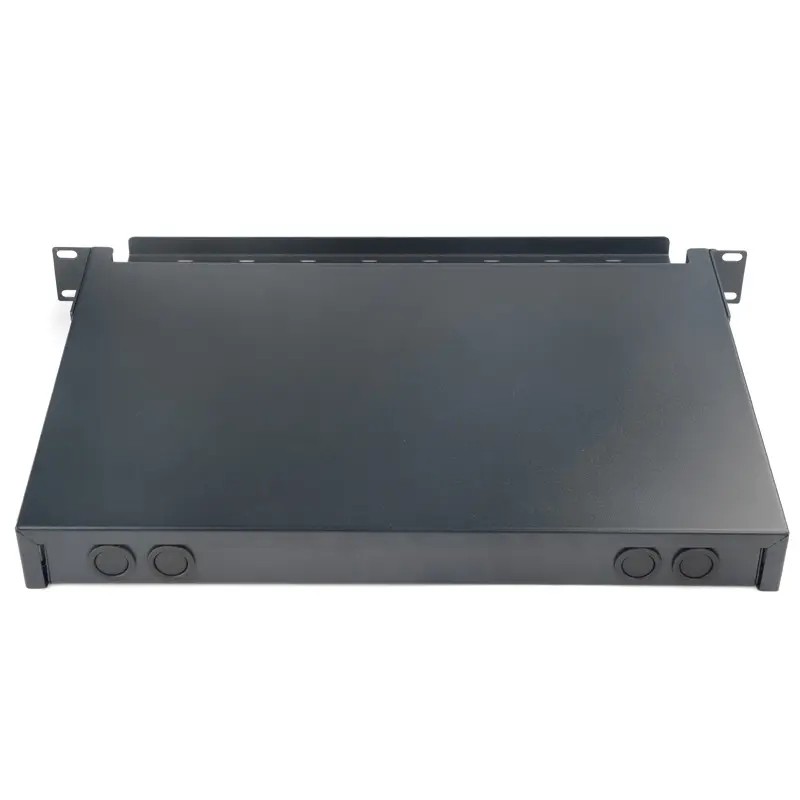

Fiber Optic 24 Port OTB Customized SC Duplex Fiber Patch Panel 1U 19'' Sliding Type Rack mount ODF Terminal Drawer Type Box

Ⅰ. Product introduction:

ODF series fiber fusion and wiring unit can be installed on 19 inch standard frame as an independent fusion and wiring unit.Product types are 12 core, 24 core, 48 core, 72 core, 96 core, 144 core.

Ⅱ . Product features:

1, full modular design, full positive operation

2, set welding and wiring in one

3. It can be installed on the 19-inch standard frame

4, suitable for ribbon and non-ribbon optical cable

5, card type installation of FC, SC, ST and LC and other adapters

6, adapter and equipment in 30° clamping type installation, not only to ensure the bending radius of the jumper curvature, but also to avoid laser burns to the eyes

Ⅲ. Product Specifications and Dimensions:

12 Core: 485 * 300 * 50 mm

24 core: 485 * 300 * 70 mm

48 core: 485 * 300 * 140 mm

72 core: 485 * 300 * 175 mm

96 core: 485 * 300 * 230 mm

144 core: 485 * 300 * 340 mm

Ⅳ. Performance indicators:

1, ambient temperature: -40℃ ~ +60℃

2, atmospheric pressure: 70KPa ~ 106KPa

3, relative humidity: ≤85% (+30℃)

4, optical fiber connector insertion loss: ≤0.3dB

5, optical fiber connector return loss PC type: ≥40dB;UPC type: ≥50dB;The APC type: p 60 db

6, electrical strength: electrical strength: ≥3KV(DC)/1min no breakdown, no arc

7, insulation resistance: 1000 m or more Ω / 500 v (DC)

8, life: ≥1000 times

9. Bending radius of receiving optical fiber: ≥40mm
