  • Product Item : YW-SMC-576-01
  • Category: Fiber Optic Cabinet
  • Material:SMC
  • Size: 1450*750*540mm
  • Optical fiber adapter type: SC/FC/LC/ST
  • Optical splitter type:Piug-in/Box type
  • INQUIRY   EMAIL

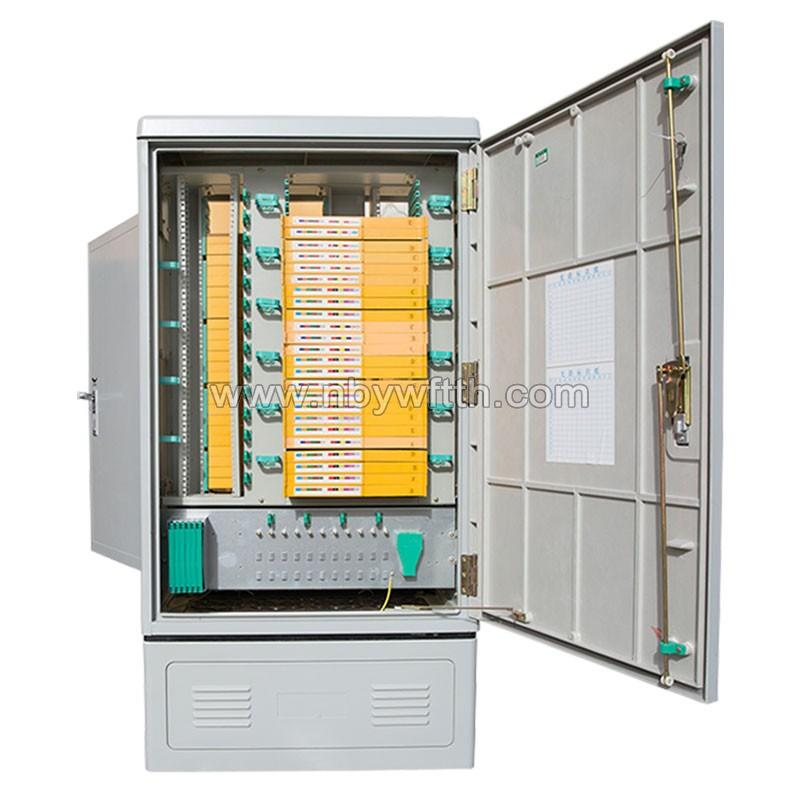

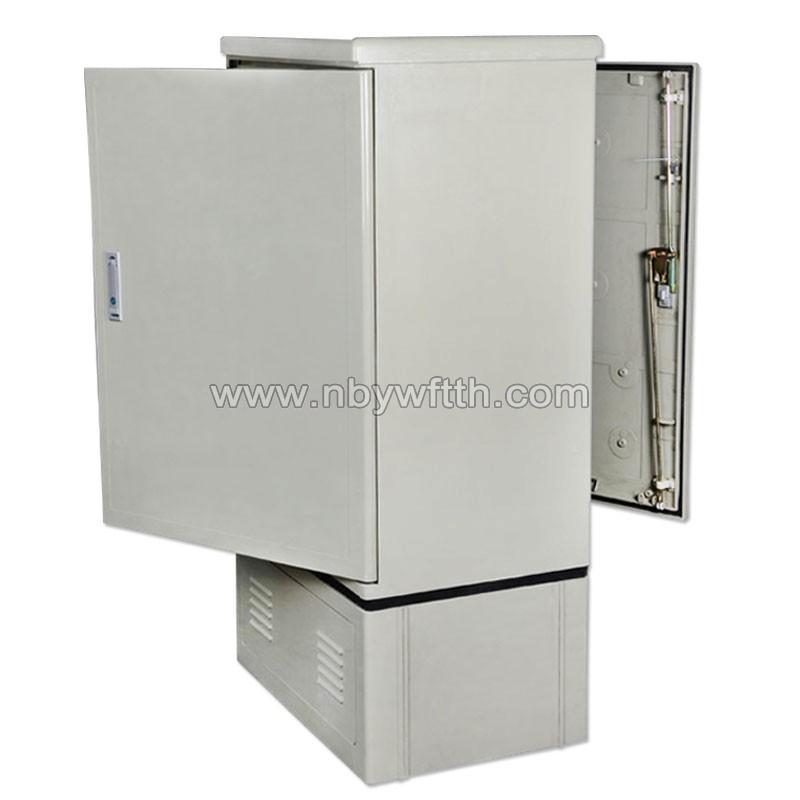

I. Product Introduction: FTTH 576 core optical fiber cabinet SMC Optical Fiber Distribution cabinet 576 ODF cabinet outdoor Waterproof IP65

1: suitable for optical fiber access network trunk optical cable and distribution cable node terminal protection, connection and scheduling management equipment, can achieve fiber fusion, handover, storage and distribution scheduling and other functions

2: the box body is made of high strength material SMC (glass fiber reinforced unsaturated polyester plastic) strong high temperature molding, long service life, anti-aging, anti-radiation, finished product surface does not need any protection, coating.  It has comprehensive protection function.

3: thick box, with good heat insulation effect, can effectively prevent condensation of water vapor in the box.  With good sealing performance, the protection class reaches GB/T4208 IP65.

4: the door adopts special sealing door seal, waterproof door lock and three-point lock, strong anti-theft performance, positive operation, can save a lot of working space, improve the working time.

5: the door Angle can reach 150 degrees, increase the installation space.

. Structure Description: FTTH 576 core optical fiber cabinet SMC Optical Fiber Distribution cabinet 576 ODF cabinet outdoor Waterproof IP65

2.1 Installation methods include floor type, wall hanging type, etc., which can adapt to different installation requirements.

2.2 Capacity: 144 cores, 288 cores, 576 cores, etc. According to different requirements of customers, the number of cores can meet customer requirements.

2.3 The integration of melting and distribution pull module, so that the transfer box large capacity, high density.

2.4 With good installation performance and anti-damage function.

2.5 The cabinet is equipped with safe and reliable optical cable fixation and grounding protection device.

2.6 The material of the cable connection box is SMC, with a capacity of 0 to 1440 cores.

2.7 Product Dimensions

Product Name Size Specification Capacity

144-core optical cable connection box 1030*550*310mm fusible with 144 cores

288 fiber optic cable connection box 1450*750*320mm can be fusible with 288 core

576 fiber optic cable connection box 1450*750*540mm fusible with 576 core


. technical characteristics  : FTTH 576 core optical fiber cabinet SMC Optical Fiber Distribution cabinet 576 ODF cabinet outdoor Waterproof IP65

3.1 high-voltage protection grounding and chassis insulation resistance: 20,000 m ω /500V(DC)

3.2 The voltage between the grounding and the chassis is 15000V(DC)/1min, no breakdown, no arc.

3.3 Static load capacity of box body: shell cover 980N, side surface 980N, door hinge 200N

3.4 Chassis sealing protection: IP65 of GB4208

3.5 Service life: 15 years

.use conditions:

4.1 Operating temperature: -5+40

4.2 Relative humidity: 90%(+30)

4.3 Atmospheric pressure: 70KPa-106KPa

4.4 Storage and transportation temperature: -40+70

4.5 Photoelectric performance:

4.5.1 Insertion loss 0.3dB, additional loss 0.2b

4..  5.2 Return loss 45dB, additional loss 5dB

4.5.3 Plug and remove durability life >1000 times

4.6 Electrical performance: insulation resistance 1000M ω 500V(DC)

4.7 Anti-electric strength: it can withstand 3000V(DC)/1min without breakdown/arc flying phenomenon

4.8 Applicability Indicators:

4.8.1 Nominal working wavelength 850nm, 1310nm, 1550nm

Optical fiber and cable comply with GB/T11819 and GB/T7424 specifications

4.8.3 Optical fiber active connectors comply with GB12507 and related standards and specifications

Name

576-core outdoor optical fiber cabinet

Specification

YW-SMC288-01

Material

SMC

Dimensions

1450*750*540mm

Capacity

576core

Waterproofing

IP65
